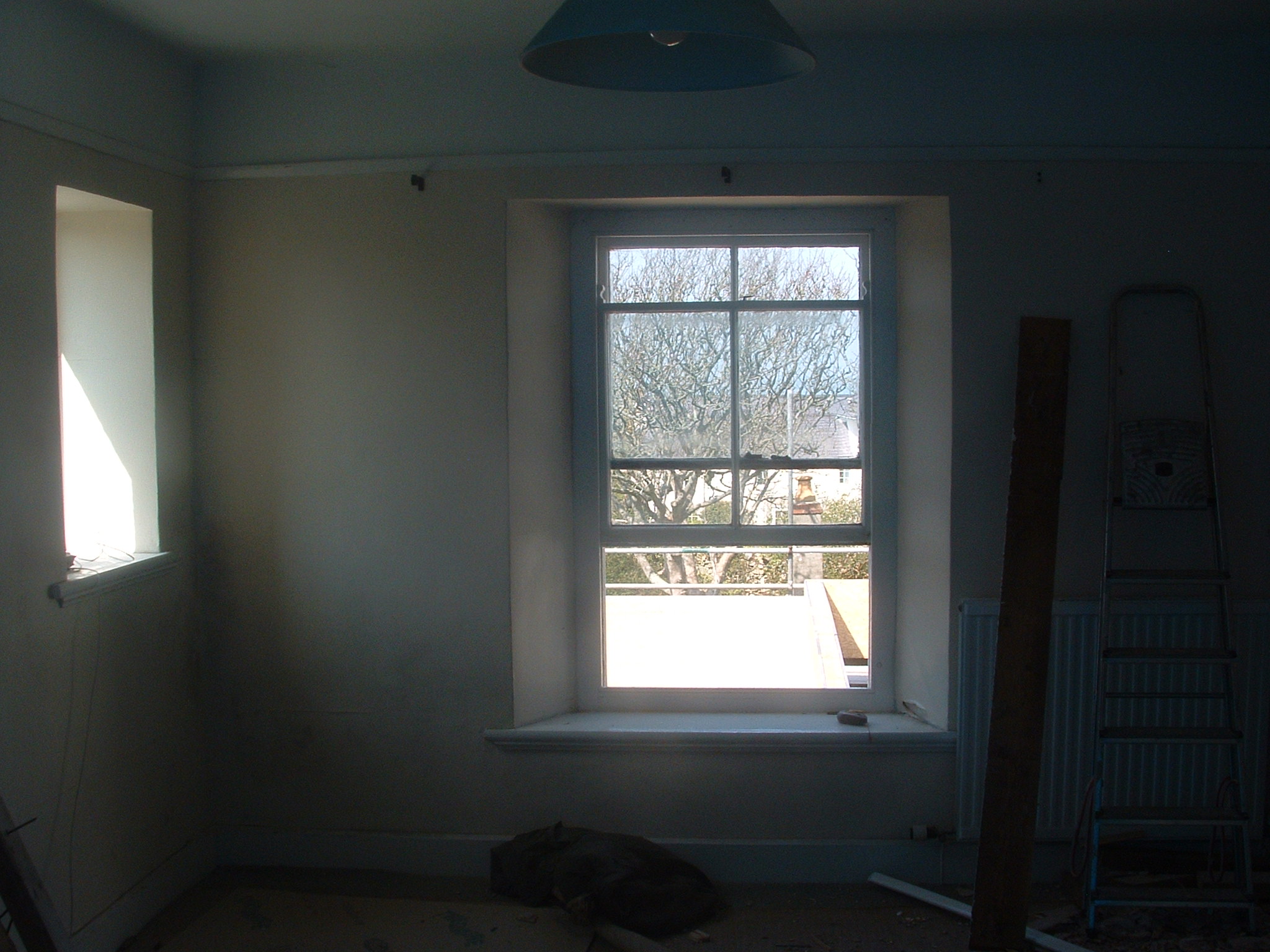

1   Bedroom 1 N wall 180.JPG

Wall due to be insulated internally – the left corner as one looks at it needs plaster off as specified to remove mould growth area and replaster roughly prior to battening out



2   Bed 1 NW corner plaster off 179.JPG

Plaster off from floor to window cill for 1 m either side of corner

then leaving an intact window reveal external corner (25mm miniumum) hack off about 200mm either side of corner up to ceiling level – ie where mould grouth is

Replaster roughly with any  old spare render 3:1 sand cement such as to allow for battening out



3      Bed 2 extistingrad  keep and add one 0161.JPG  See plans for where other recovered rad is to go

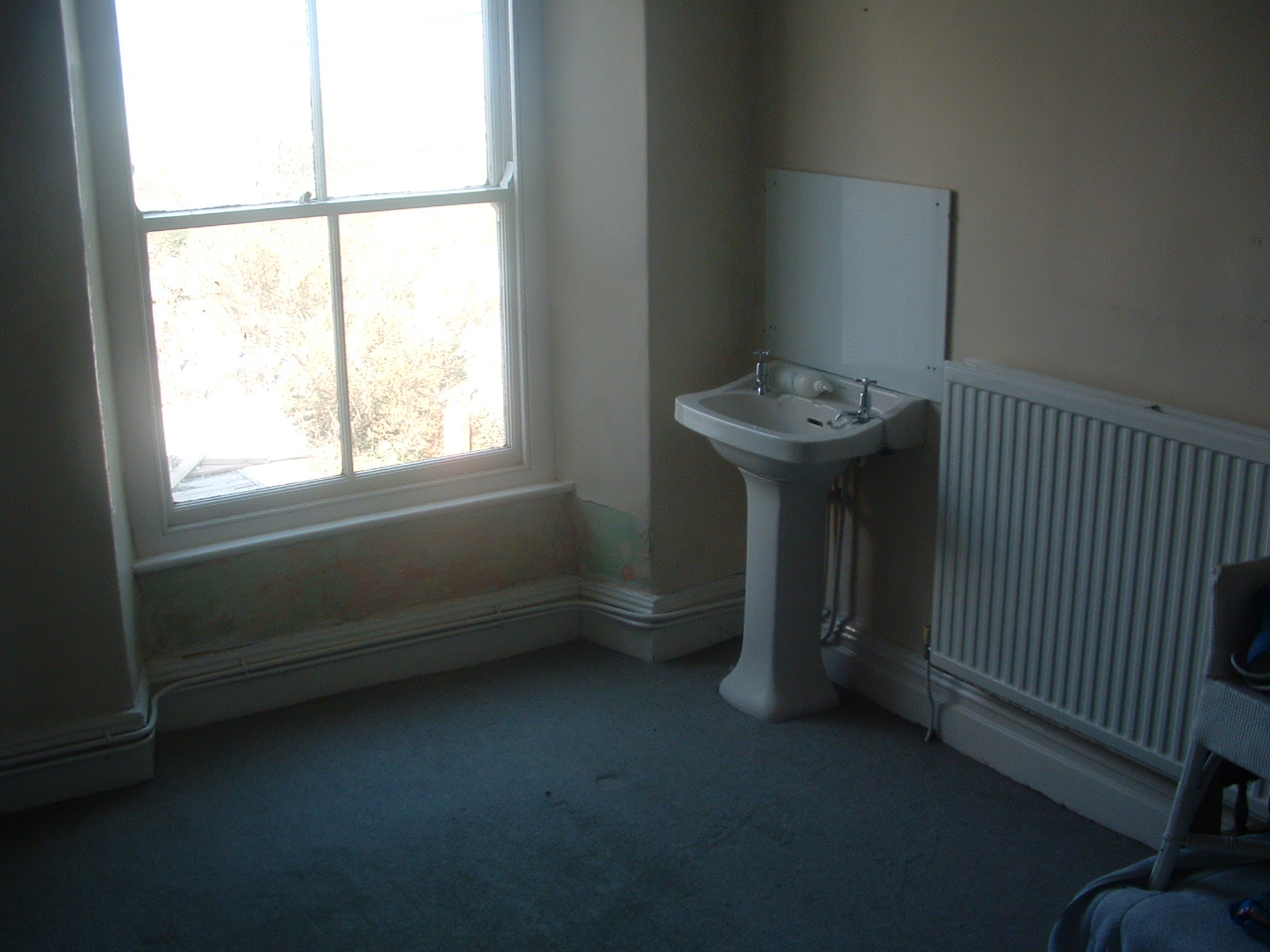

4     Bed 2 pedastal 162.JPG  new services for DHW and CW to be under floor as per SK plans



5     Bed 3 existing rad MAY be retained or mayuse longFARAL 0155.JPG



6     Bed 3 fanlight removed as well as door 205.JPG  CG to liaise with SB as to its replacement

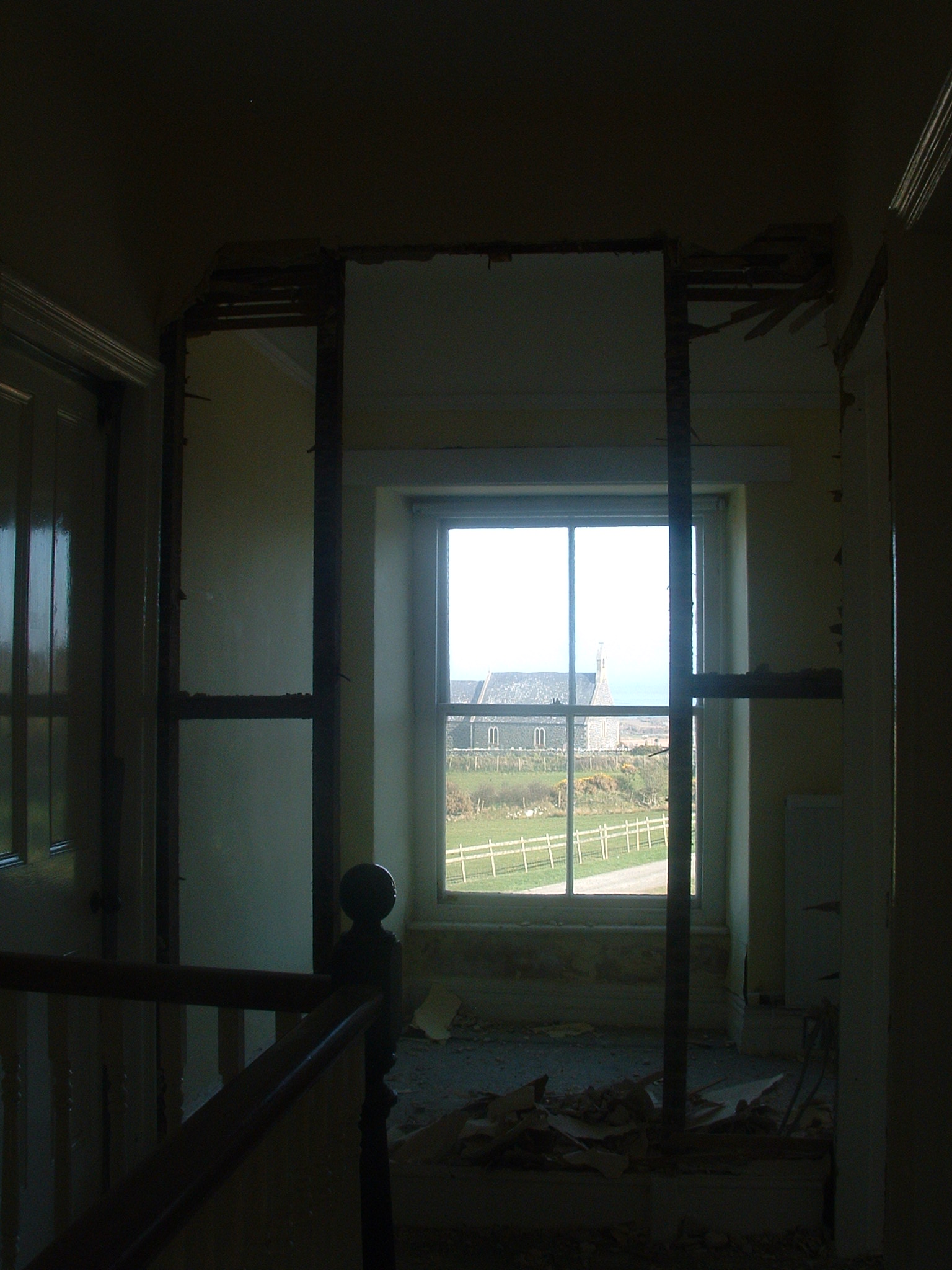

7     Bedroom 3 N wall demo fan light 203.JPG from other side (north)

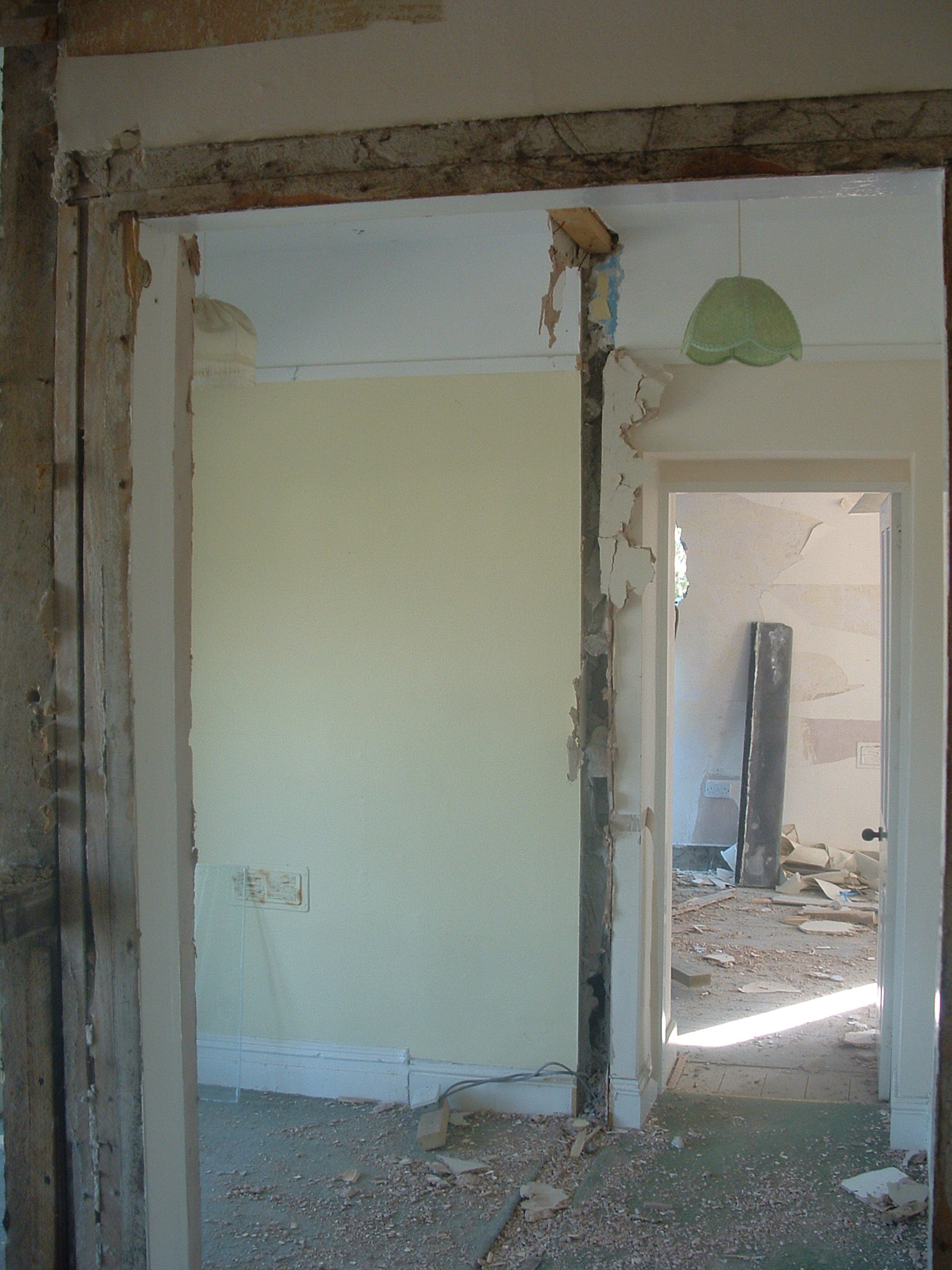

8     Bed 3 West wall, IT wsa agreed with SB that this would become an alcove  204.JPG

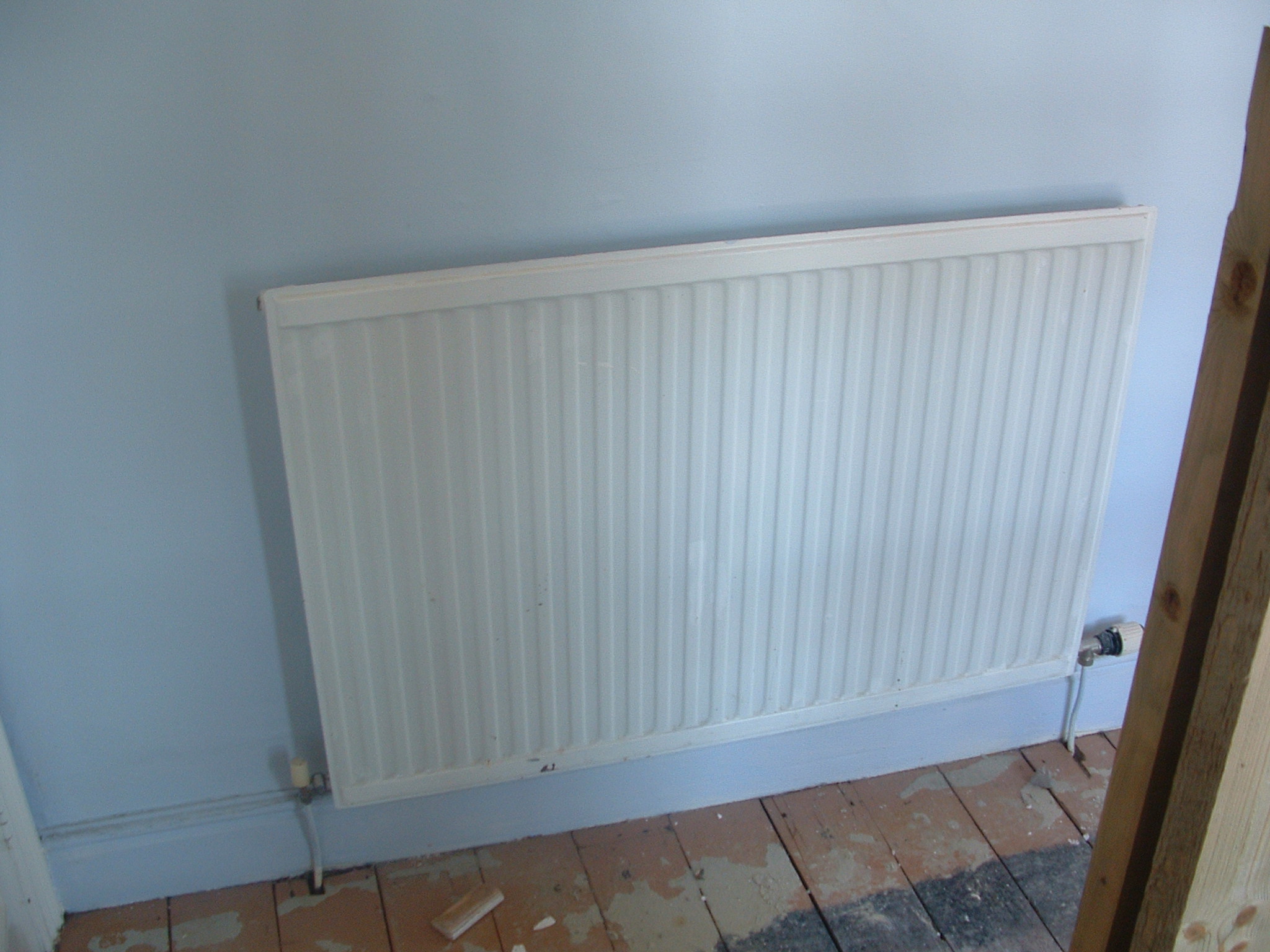

9     Ensuite corridor rad keep0165.JPG

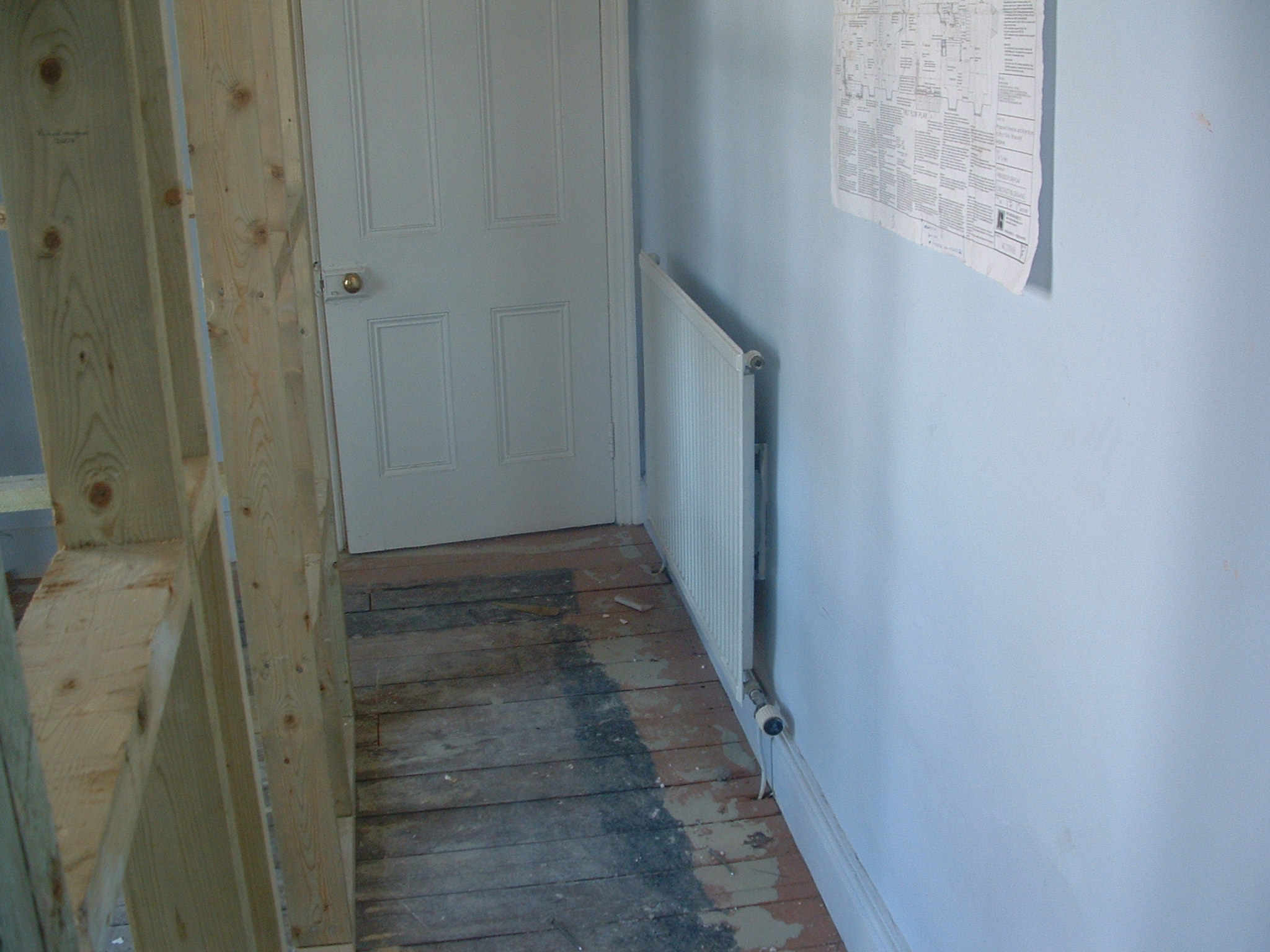

10     Ensuite corridor rad keep166.JPG



11    Sittting room West wall remove wall plaster NW at top where mould growth evident before installing new insulation 167.JPG

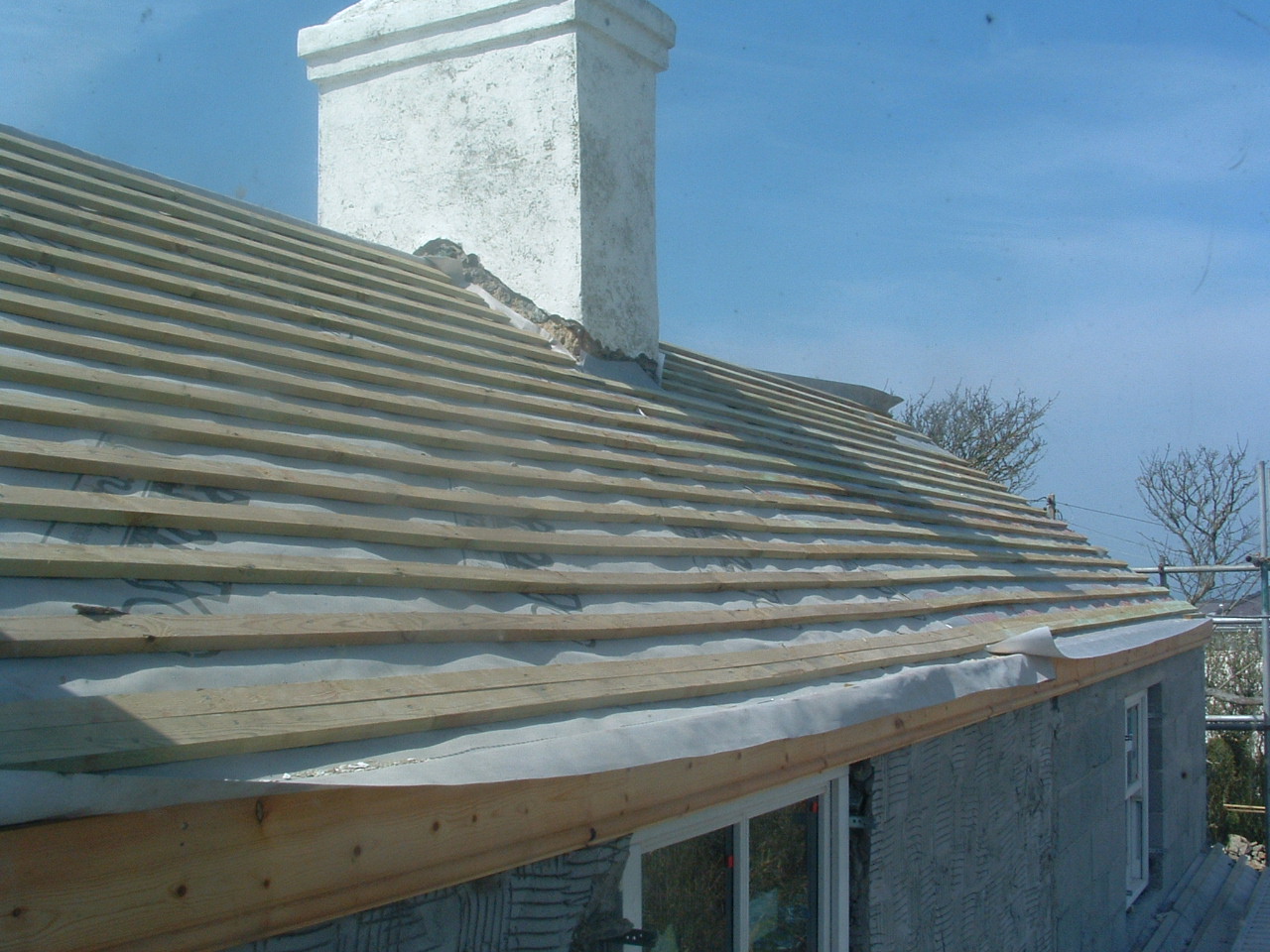

12     Rear add East roof battens 163.JPG

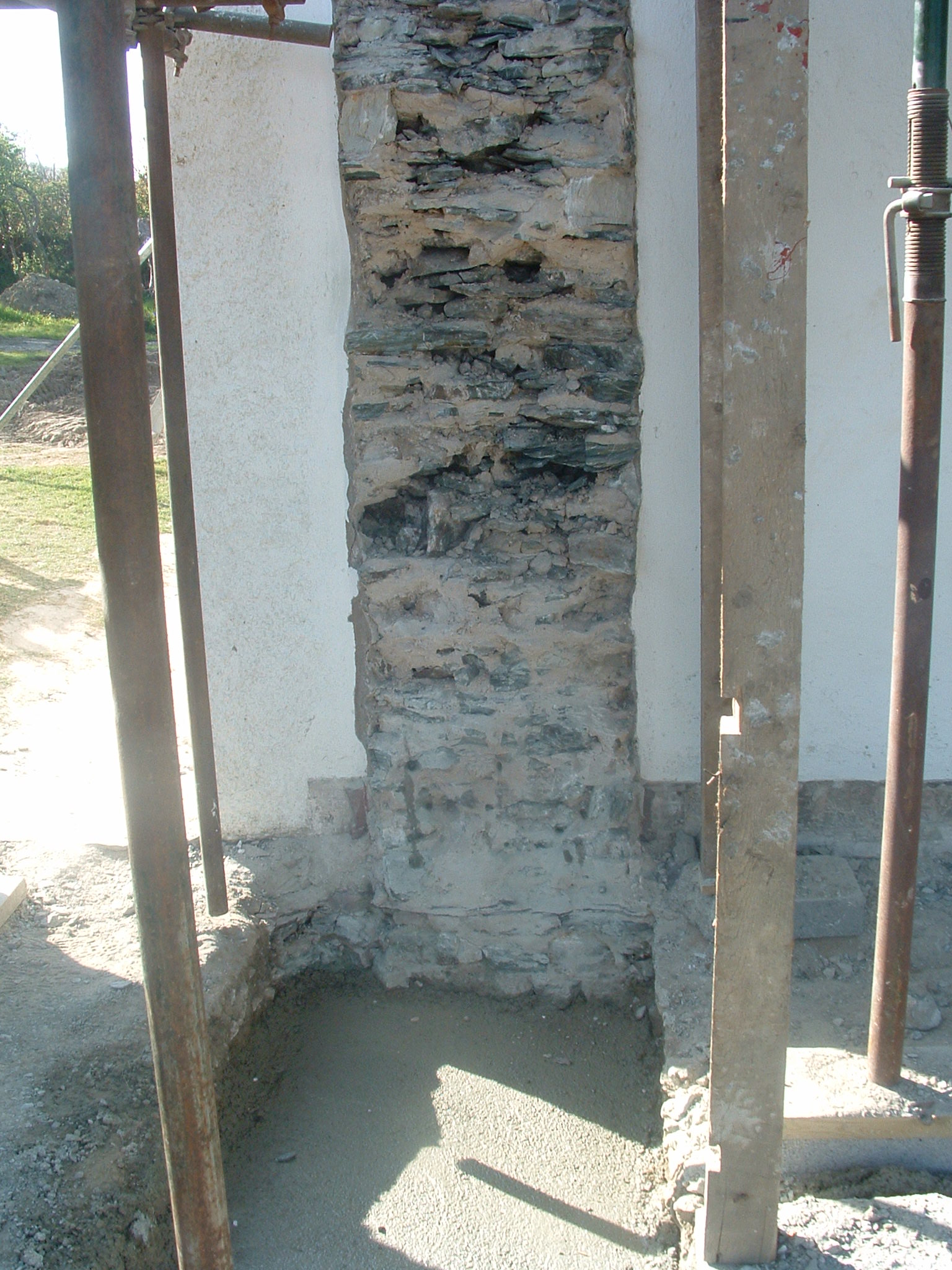

13     Sitting room DPC holes194.JPG

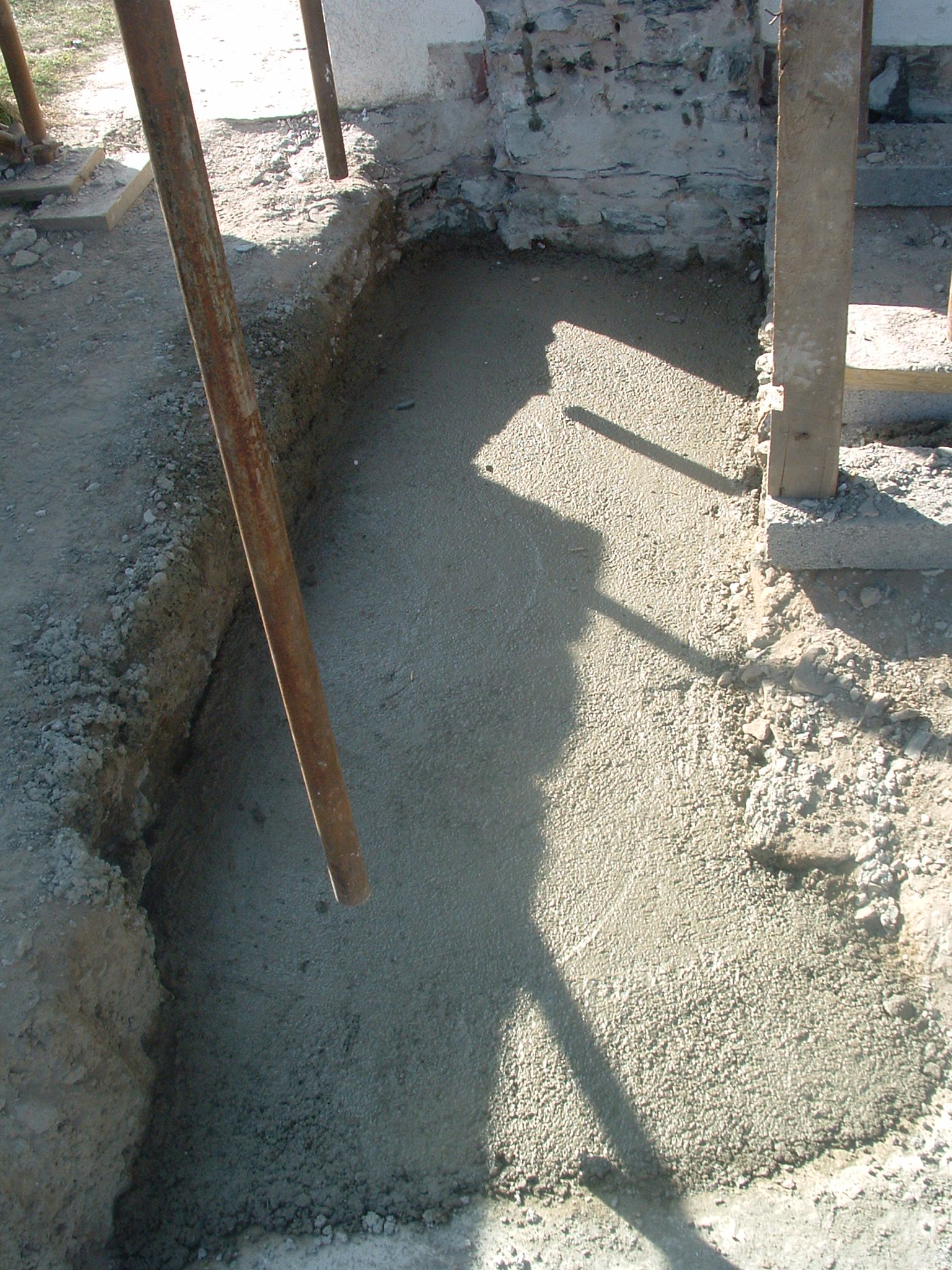

14     Sitting room extenson founding 193.JPG
