Burnt wires and connector

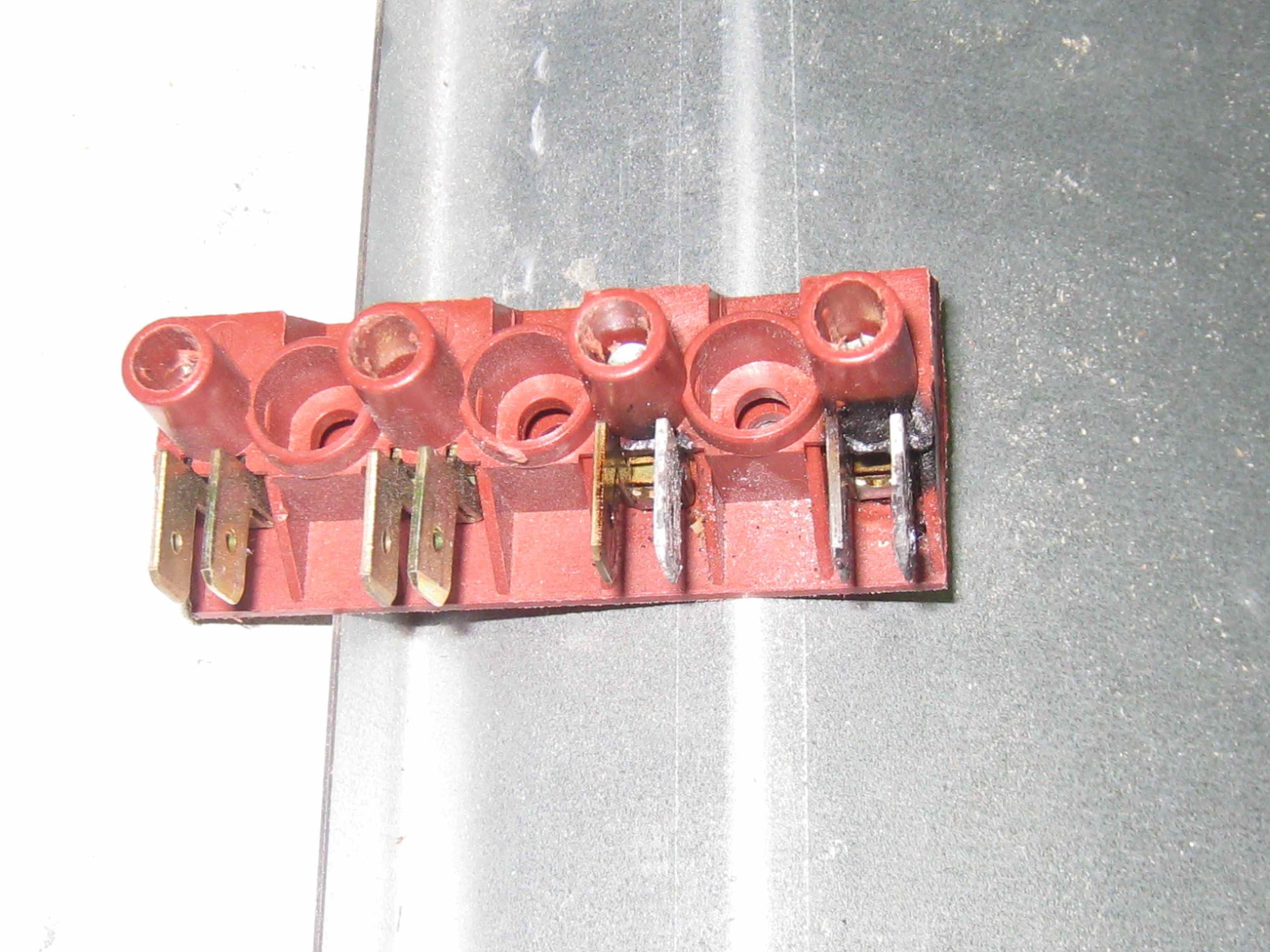

- IMG1768 defective burned out connector set on own. Note the two lower right hand spades are burnt out.

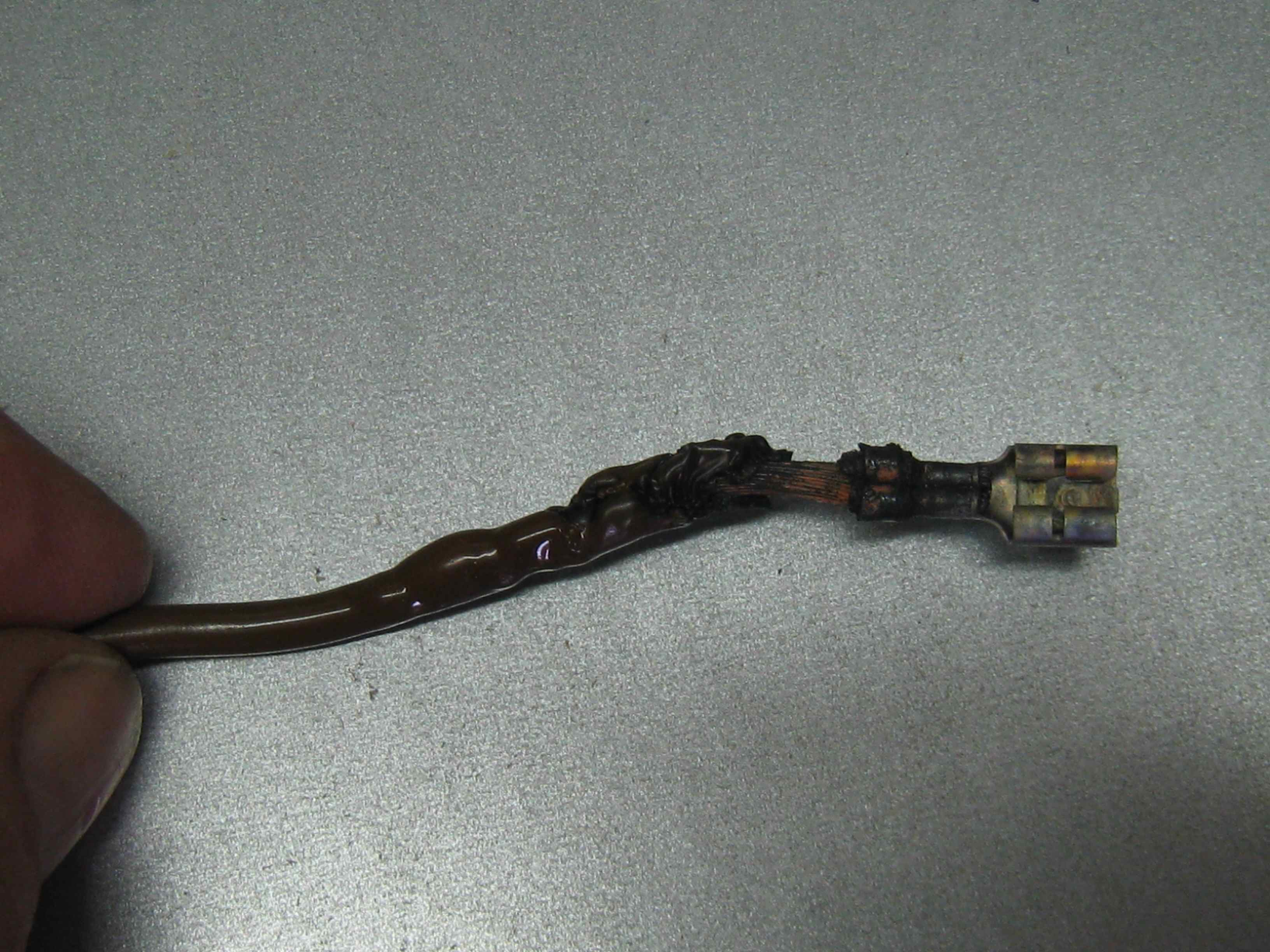

- IMG1762 burnt copper
- IMG1766 bad photo of defective wire manufacturer

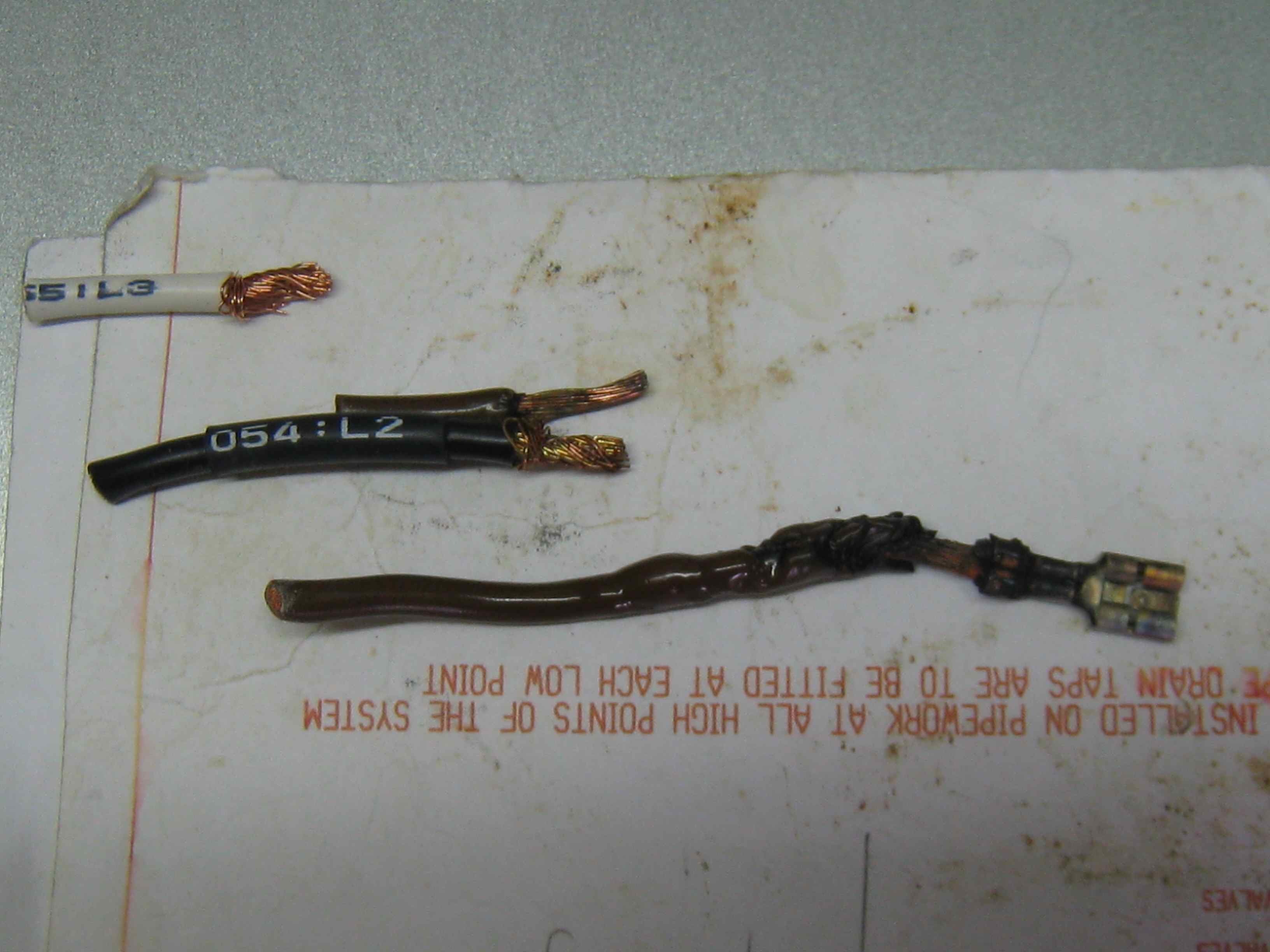

- IMG1759 Burnt out and incorrectly installed wires. The bottom right hand one has had a temporary repair on it by me to see if I could get the machine working again
- IMG1763 burnt copper and insulation

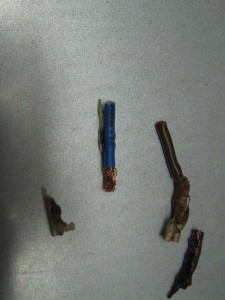

- IMG1767 group photo of burnt and defective wires

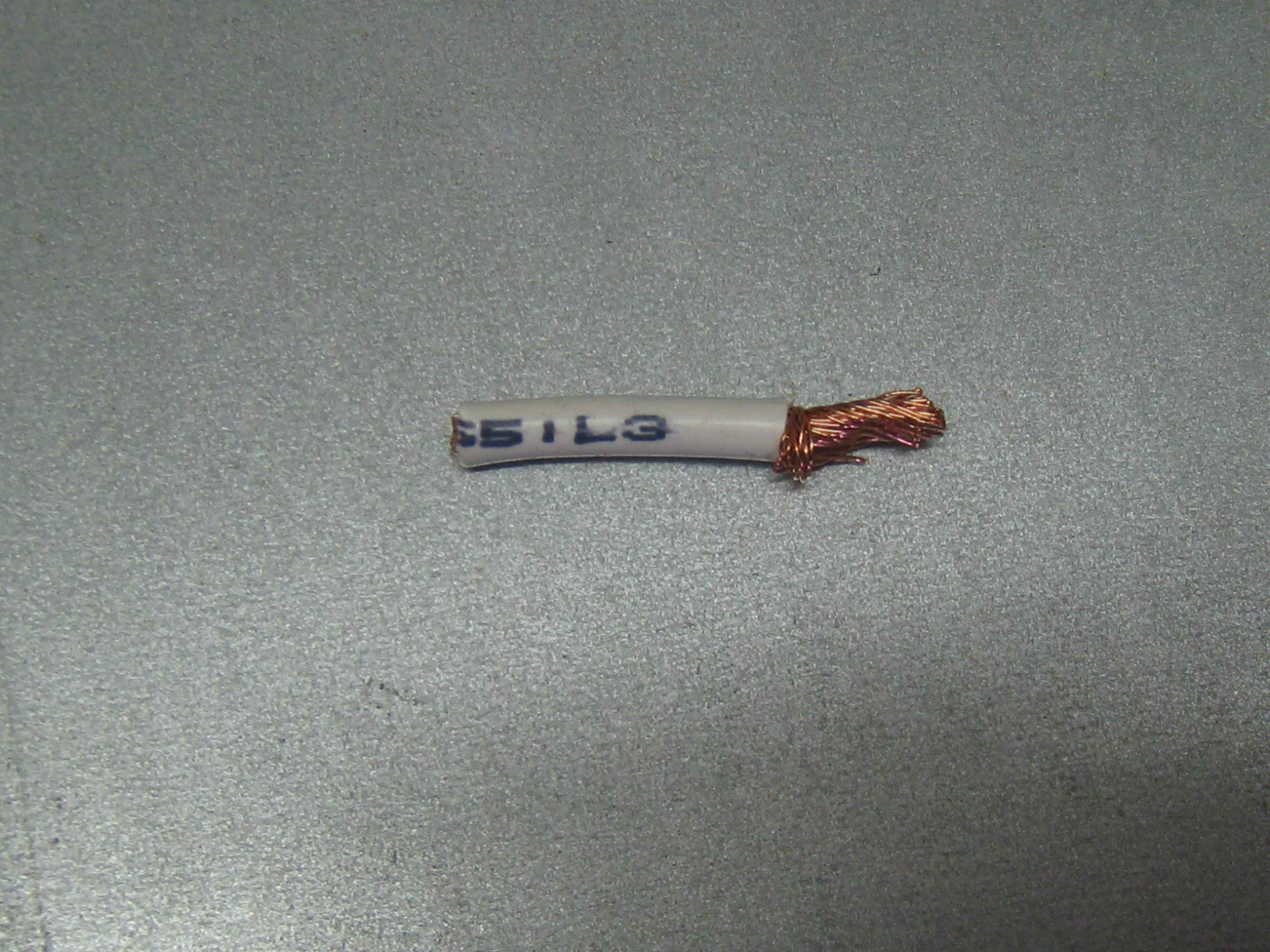

- IMG1760 Burnt out and incorrectly installed wires in manufacture, as cut off and displayed separately

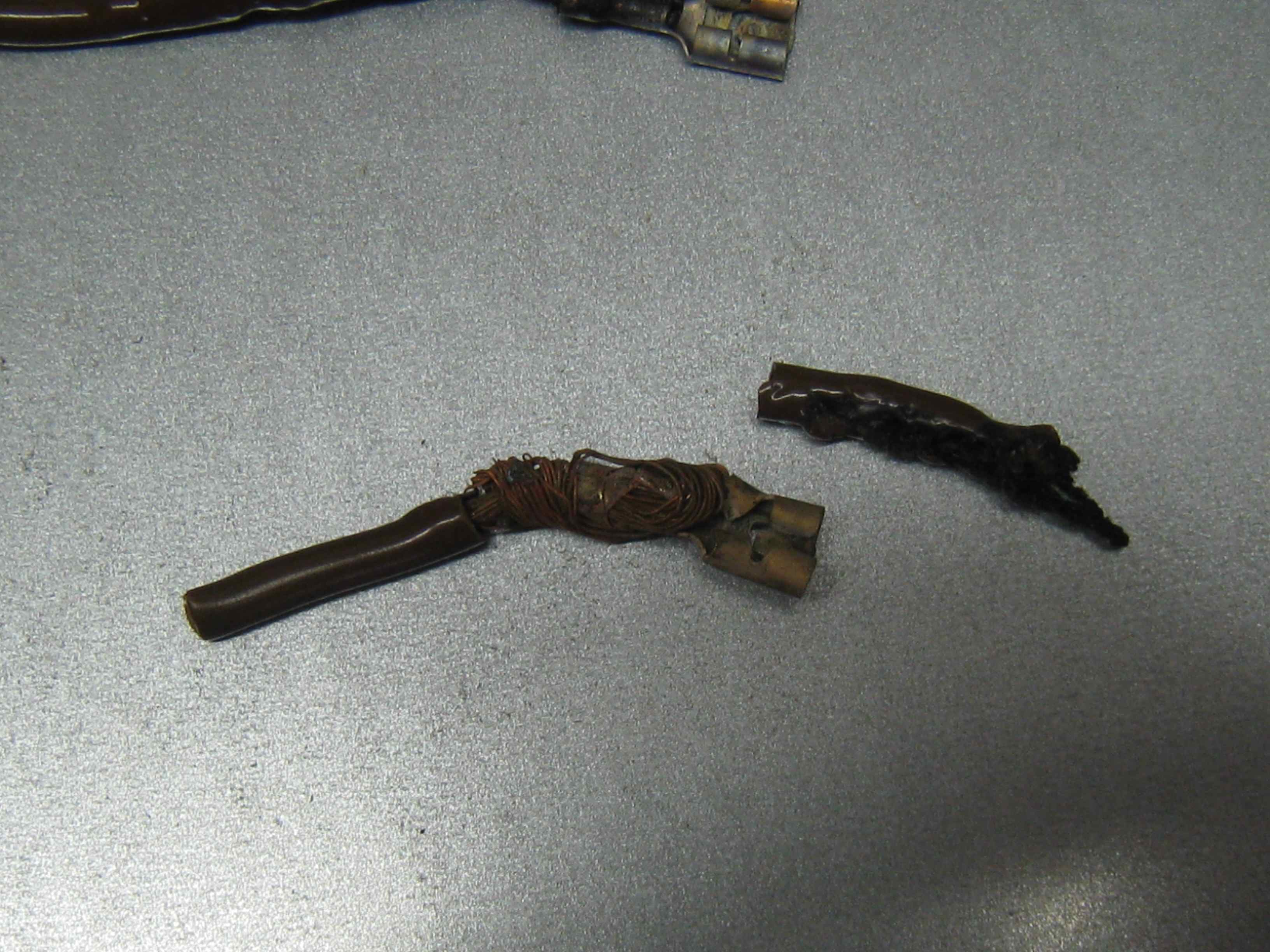

- IMG1764 burnt insulation
- IMG1768 group photo of burnt and defective wires

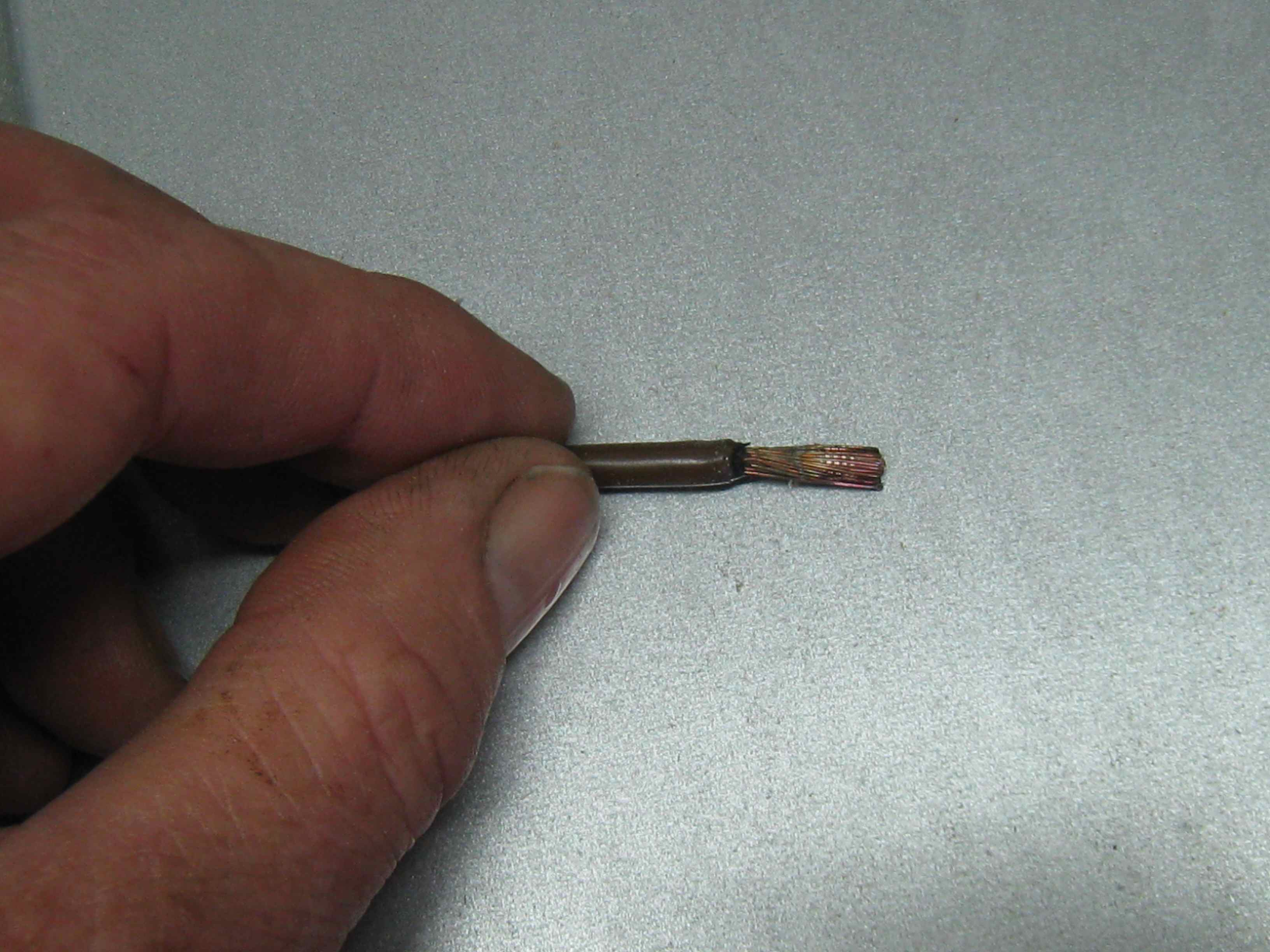

- IMG1761 White wire was incorrectly installed wire in manufacture. See bunching of copper strands that have entered the screw block

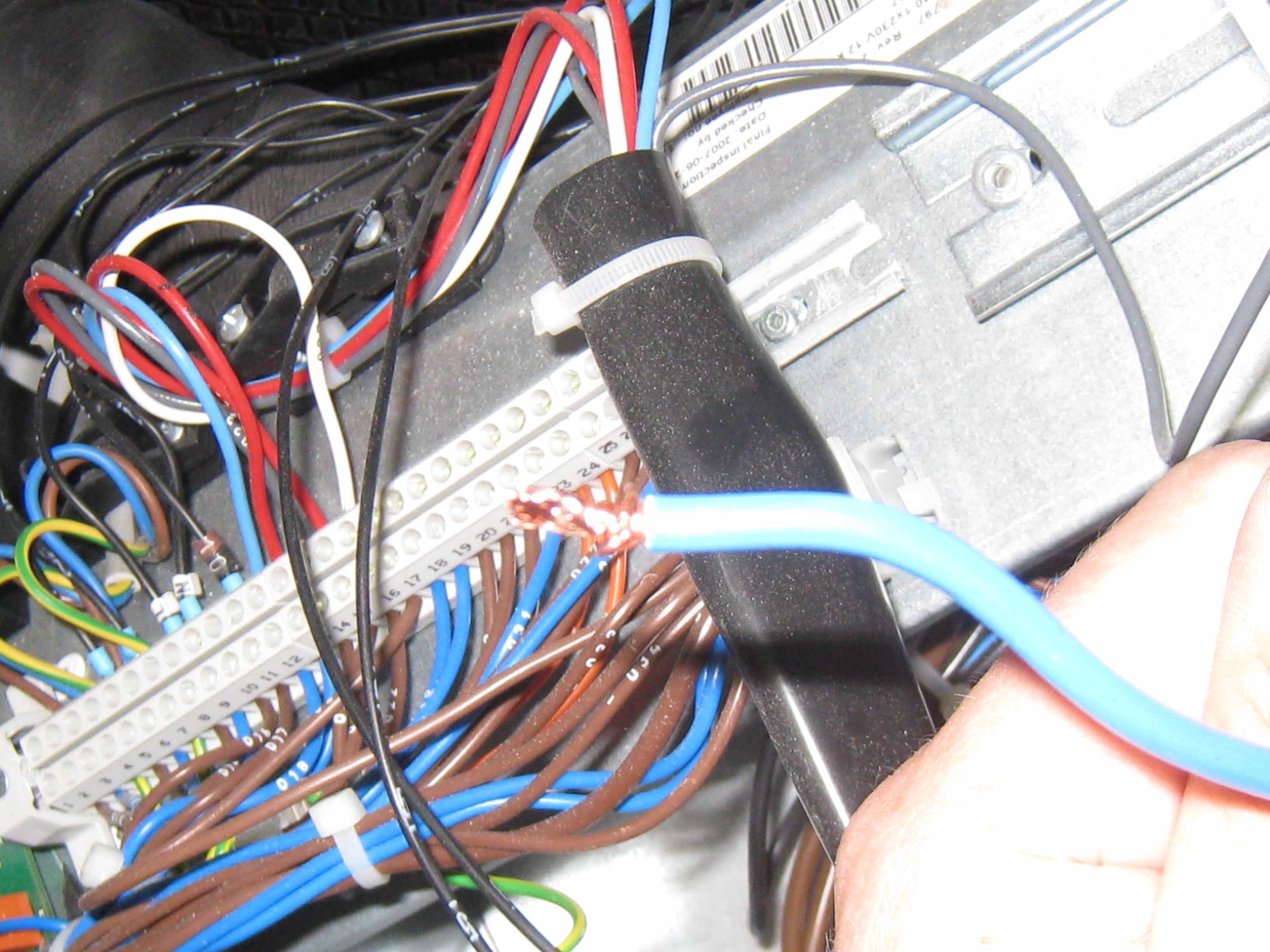

- IMG1765 temp ‘repair’ to test and get it workingÂ
- 1MG1769 burnt out connector set – was replaced
